Login- SKU: TB3DTRG2
- Barcode (EAN): 9350784019257
- Displays: Single display, Dual display
- Displays: Dual display
- Host Connection Technology: Thunderbolt 3
- Mac Processor Type: M1/M2, M1/M2 Ultra/Pro/Max, Intel
- Display supported on Mac M1/M2: Single display
- Display supported on Mac M1/M2 Ultra/Pro/Max: Single display, Dual display
- Display supported on Mac Intel: Single display, Dual display
- Display supported on Windows: Single display, Dual display
- Display supported on Chrome: Single display, Dual display
- Docking Station Type: Desktop
- Additional Features: Ethernet, 3.5mm Audio
- Data Rate: USB-C (3.1 Gen 2) port: 10Gbps | USB-A (3.1 Gen 2) ports: 10Gbps | USB-A (3.1 gen 1) ports: 5Gbps | Gigabit Ethernet port: Up to 10/100/1000 Mbps
- Resolution: With ThunderboltTM 3 Laptops Dual Display : 3840 x 2160@60Hz | With USB-C Laptops: Single Display: 3840 x 2160@60Hz, Dual display: 1080p@60Hz
- Input: ThunderboltTM 3 or USB-C (With DisplayPort Alt Mode) with 60W Power Delivery
- Output: USB-A 3.1 (Gen 2) – 10G x 1 | USB-A 3.1 (Gen 1) – 5G x 2 | USB-C 3.1 (Gen 2) - 10G x 2 | DisplayPort x 2 | 3.5mm Combo Jack x 1 | Gigabit Ethernet Port x 1
- Device Compatibility: Apple, Chromebook, Microsoft
Truly Universal
The dock provides universal compatibility across both Mac and Windows for dual monitor support over all laptops with Thunderbolt 3 or USB-C ports. This enables IT professionals to deploy the TURBO dock as a single dock solution across all users, in turn enabling hot desk setups at workplaces with cross platform laptops enabled with either Thunderbolt 3 or USB-C outputs.
Ultra High-Definition Dual Display
The TURBO dock supports dual monitors with 4K@60Hz via the twin DisplayPort outputs when connected to a Thunderbolt 3 enabled laptop. It will also support dual monitor with 1080p resolution or a single 4K@30Hz monitor when connected to a USB-C enabled laptop.
* This dock only supports a single extended display for users using MacBooks with base level M1/M2 processors. Only M1 and M2 Mac users with Pro, Max and Ultra processors can connect to two extended displays.
Complete Connectivity

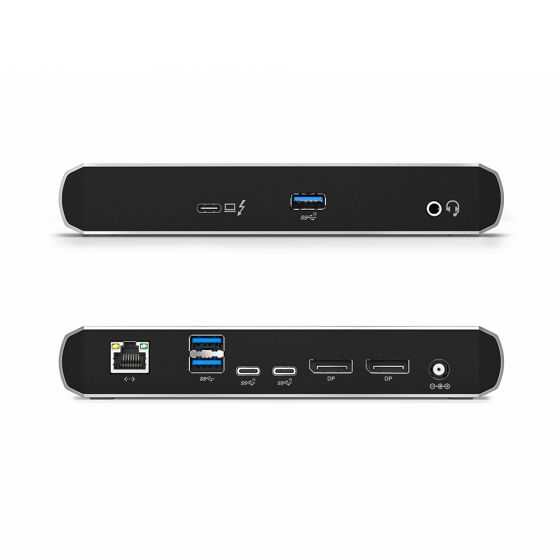

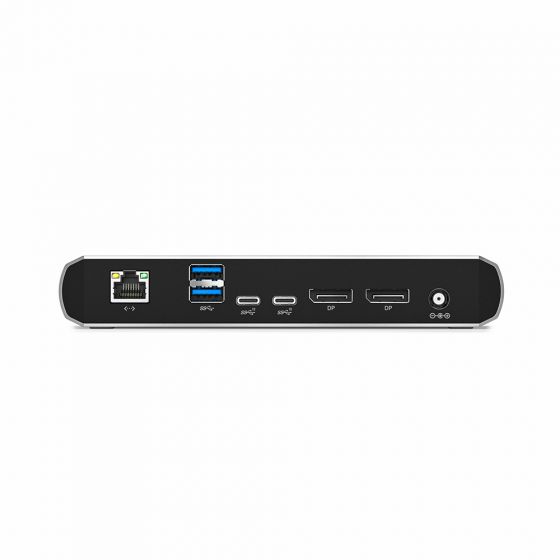

The ALOGIC TURBO dock features 2 x DisplayPort, 2 x USB-C (10G), 1 x USB-A (10G), 2 x USB-A (5G), Gigabit Ethernet and Combo headphone and mic jack to cover all the connectivity requirements.
