Fusion Pro NEXUS USB-C Universal Video Dock

SKU: FUPCVH
Price:
Rs. 9,990.00

Stock: In Stock

Special Offer: USE code ALG20 for 20% off

User Manual
Specification Sheet
Fusion Pro NEXUS
USB-C Universal Video Dock
​Simplify technology with the ALOGIC NEXUS Universal Video Dock.
Up to 4K Video
Pass-through Charging
Built-in USB-C Cable
Shielded Construction
Compact & Portable
Simplify Connections
on the Go

The ALOGIC NEXUS Universal Video Dock has been designed to easily connect your computer to any display and audio system you’re likely to encounter. Featuring HDMI, DisplayPort, VGA and USB-C video outputs, the NEXUS dock is the last word in portable video connectivity.

Stunning 4K Video

Ensure your presentation looks its best.
The NEXUS dock supports up to 4K video output from HDMI, DisplayPort and USB-C video outputs to provide the most detailed and realistic images possible*.

SUPPORTS

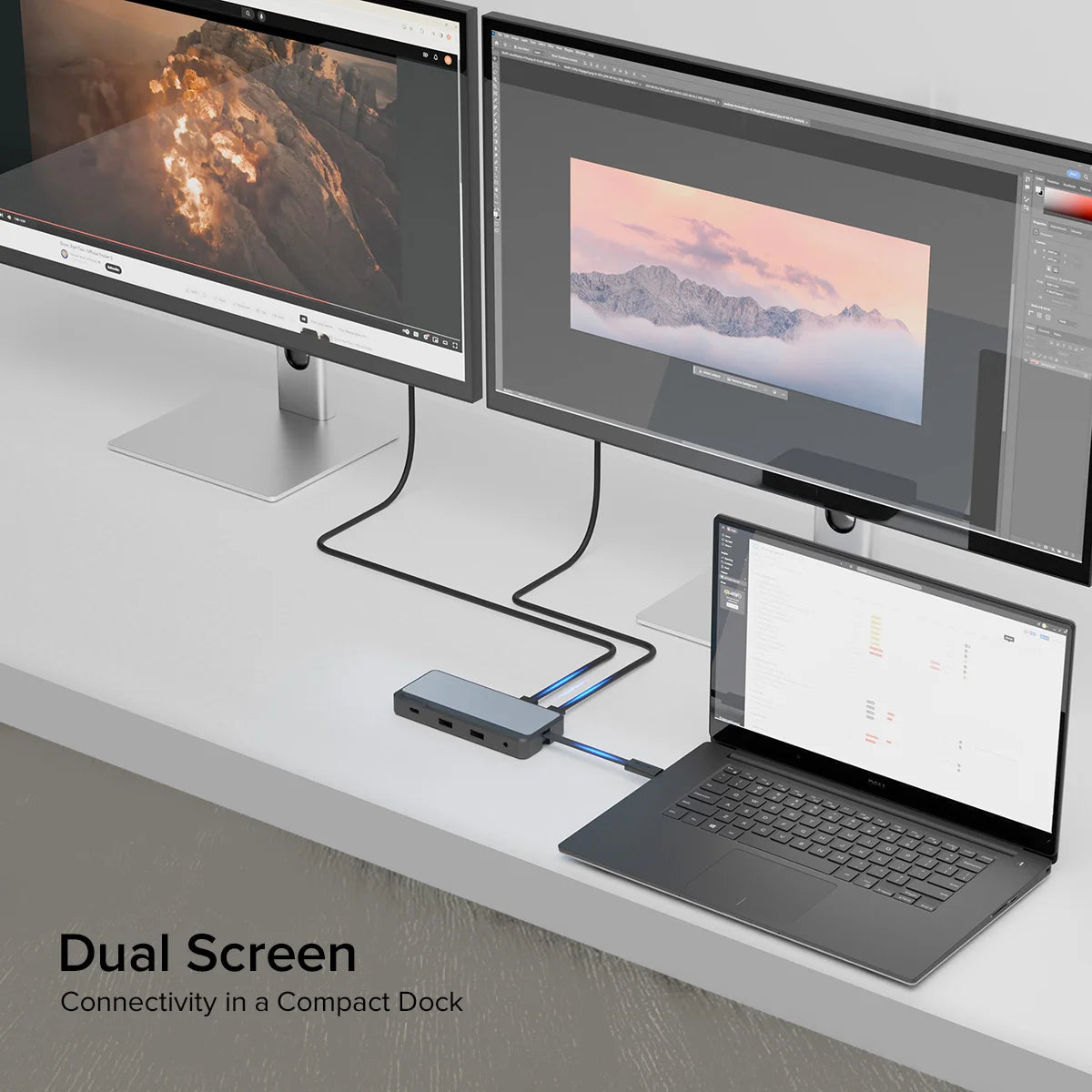

SINGLE DISPLAY
2+ DISPLAYS

*Number of displays and resolutions supported are dependent on the type and capability of the computer used. Apple Mac computers support a single display with this device. Windows machines are able to connect multiple displays.

Easy, Breezy Multitasking

This multi-purpose hub is designed for mobile users – road warriors, educators, students and professionals who work between the office and home.

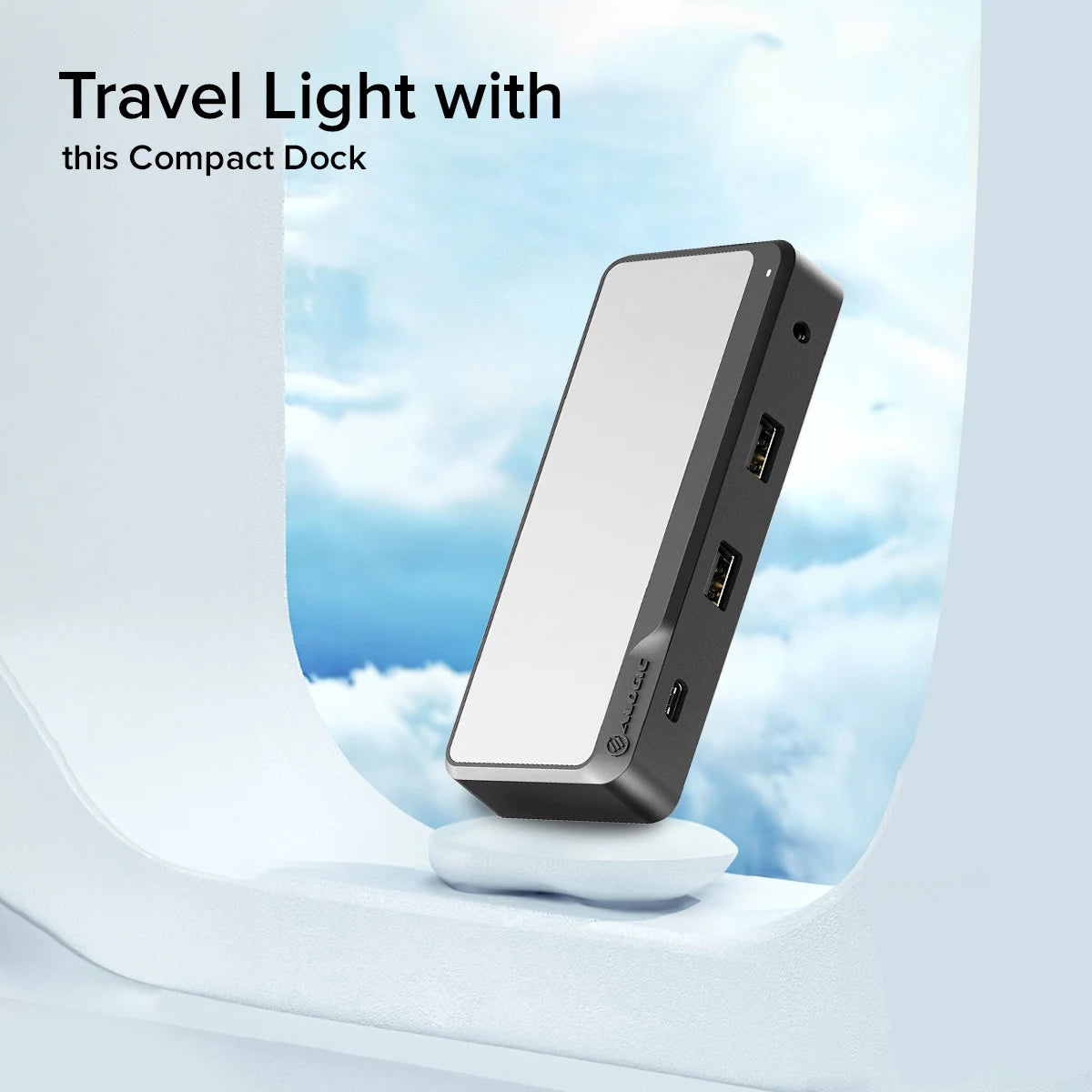

Built for Travel

A robust and elegant mix of Aluminium and impact resistant ABS ensure the hub is strong, and the folding cable stows within the housing so it can live in a laptop bag while taking up minimum space and without fear of being damaged.

Frequently Asked Questions

General

Will this device work with my current computer that has USB-A, USB-C or Thunderbolt ports?
Yes! This product is compatible with all Windows, macOS and Chromebook computers including those with USB-A and Thunderbolt ports.

Note: When connected to a USB-A port, only HDMI 2 and 3 can be used (2x 1920*1080@60Hz displays).

Maximum resolutions for the different video outputs vary depending on the capabilities of the connected computer. Guidance on achievable resolutions can be found in the resolution support table in the specifications for the product.
Will this device work with my Macbook?
Yes! This device works with all MacBooks released since 2018.MacBooks can only connect to one display at a time using this device. If you need to connect two or more monitors to a MacBook, please take a look at ALOGIC DisplayLink based docks including the DX2, DX3, DV3,DV4, CH2 and CD2 products.
Can I charge my computer with this device?

This device can operate standalone and receive power from the computer it is connected to, or you can connect a USB-C Power Delivery (USB PD) power adapter (available separately) to the hub and it can charge computers and tablets that support USB PD charging.

The device supports USB PD 2.0 and 3.0 power adapters up to 100W. Note that the device can reserve up to 15W from power adapters to power itself and peripheral devices connected to the ports on the hub so it is best to use a USB PD power adapter that is at least 15W larger than the power adapter that was supplied with the computer.

The maximum Wattage that this hub can provide to charge a computer is 85W (100W power adapter minus 15W reserved by the hub). This is sufficient for most laptops, but a few larger high performance laptops may slow charge or not be able to charge through this device. If the computer shows a message indicating that it is not receiving enough power from the device, increase the size (Wattage) of the connected power adapter or connect the power adapter directly to the computer.

Specifications
  • Part No.: FUPCVH

Physical Characteristics

  • Product Dimensions: 130 x 55 x 17.5mm (L x W x H excluding cable)
  • Cable Length: 230mm
  • Colour: Space Grey and Black
  • Weight (product): 88g approx
  • Materials: Aluminium and ABS
  • Input: 1 x Integrated USB-C cable for connection to computer
    1 x USB-C power input; supports USB Power Delivery (USB PD) power sources up to 100W (shared with USB-C video output)
  • Output: 1 x HDMI 2.0
    1 x DisplayPort 1.4
    1 x VGA
    1 x USB-C 3.2 Gen 2 10Gbps with DP 1.4 Alt Mode and PDpassthrough
    2 x USB-A 3.2 Gen 2 10Gbps
    1 x 3.5mm Audio
    1 x RJ45 Ethernet 1Gbps
  • Power: Can operate powered from the host computer or by connecting a USB-C Power Delivery (USB PD) power adapter (not included).
    The hub will accept up to 100W of power when a suitable USB PD power supply is connected; up to 15W is reserved for use by the hub and connected devices and the remaining power will be made available to charge the computer (up to 85W, dependent on the size of the power supply).
  • Video Resolution: HDMI, DisplayPort and USB-C - Up to 4K UHD at 60Hz
    VGA - Up to 1920x1200 WUXGA
    Maximum resolution is dependent on the capability of the host computer and resolution of the connected display.
    See resolution tables at the bottom of this document for full specifications.
  • Audio Support: Supports HDMI audio output
    Supports stereo audio out and mic/line in via 3.5mm connector
  • Environmental Characteristics: Operating Temperature - 0°C to +35°C
    Operating Humidity - 10% to 85% RH (no condensation)
  • Package Includes: 1 x FUPCVH USB-C Universal Video Hub
    1 x User Manual
  • Device Compatibility: Compatible with Windows, MacOS, Chrome OS computers.
    USB-C port on the computer that the device is connected to must support DisplayPort Alternate Mode video output for the video ports on the hub to work.
    USB-C port on the computer that the device is connected to must support USB Power Delivery charging for pass through charging from the hub to work.
    Windows and some Chrome OS computers are able to show independent video on more than one display connected to this device.
    MacOS devices are not able to show independent video on two or more displays connected to this device. This device is suitable for connecting MacOS devices to a single display.
  • Compliance: FCC, CE, UKCA, RoHS
  • Warranty: 2 Years
  • Barcode (EAN): 9350784027306
