Fusion Pro AXIS
USB-C Dual Display Dock
​​​Compact 9-in-1 Dock for Portable Connectivity.
Up to 4K Video
Pass-through Charging
Plug & Play Driverless
Shielded Construction
Compact & Portable
​​Workspaces Made Simple​

​​This dock does the job of a large format desktop dock while doing away with the bulky box and power adapter.

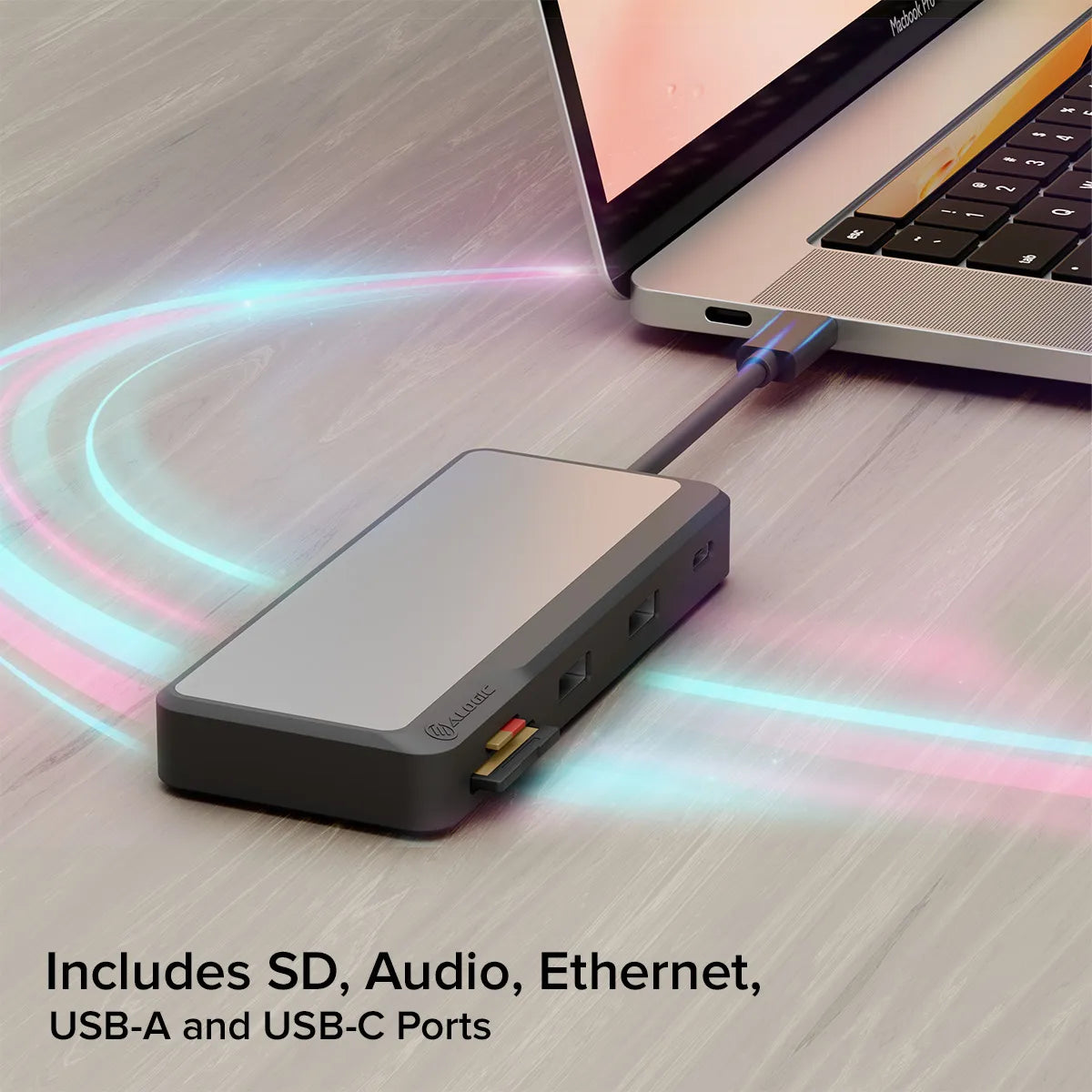

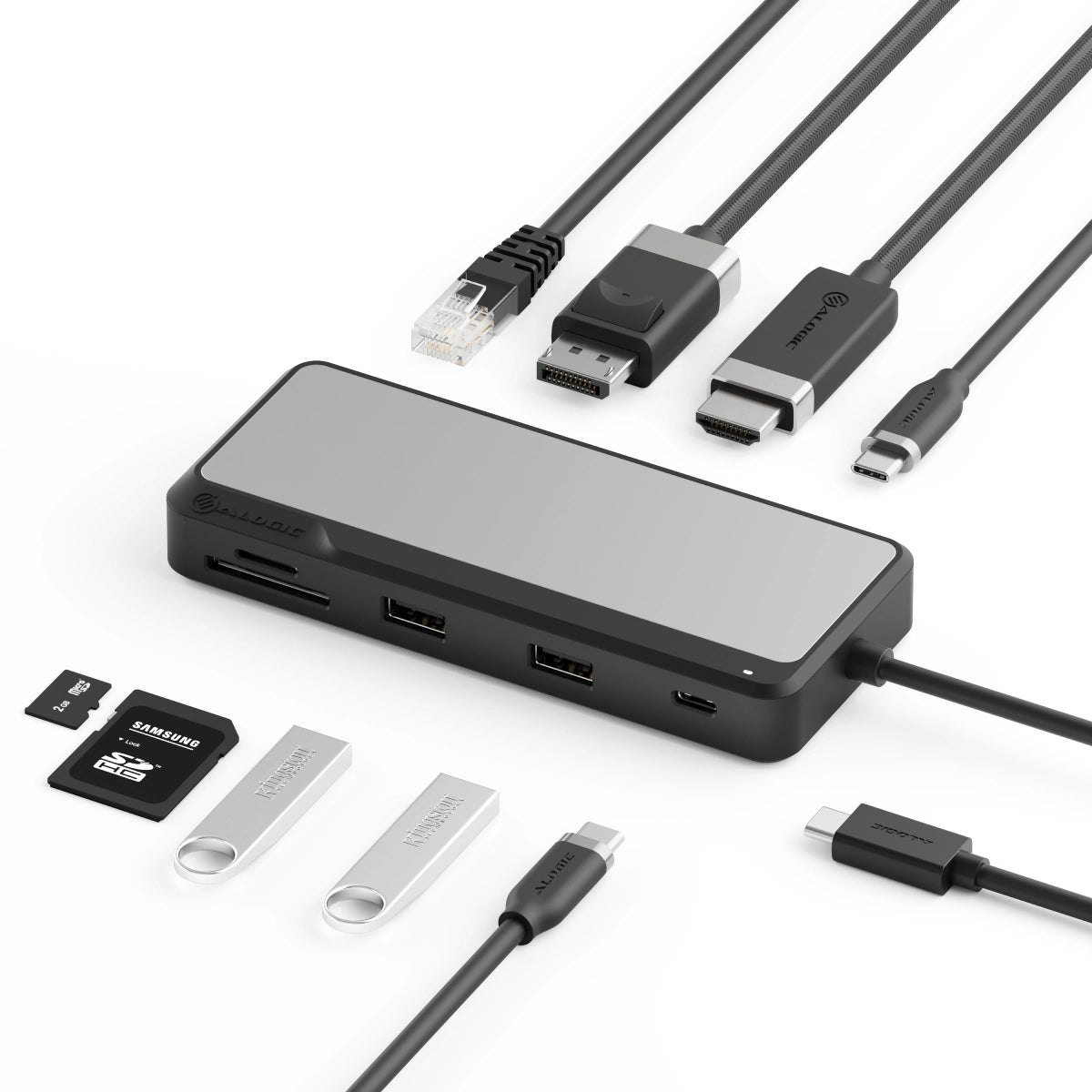

​The dock has the ability to connect two monitors, up to four USB peripherals and Gigabit Ethernet. SD and micro SD card readers gives the added flexibility of managing photos and files on memory cards.

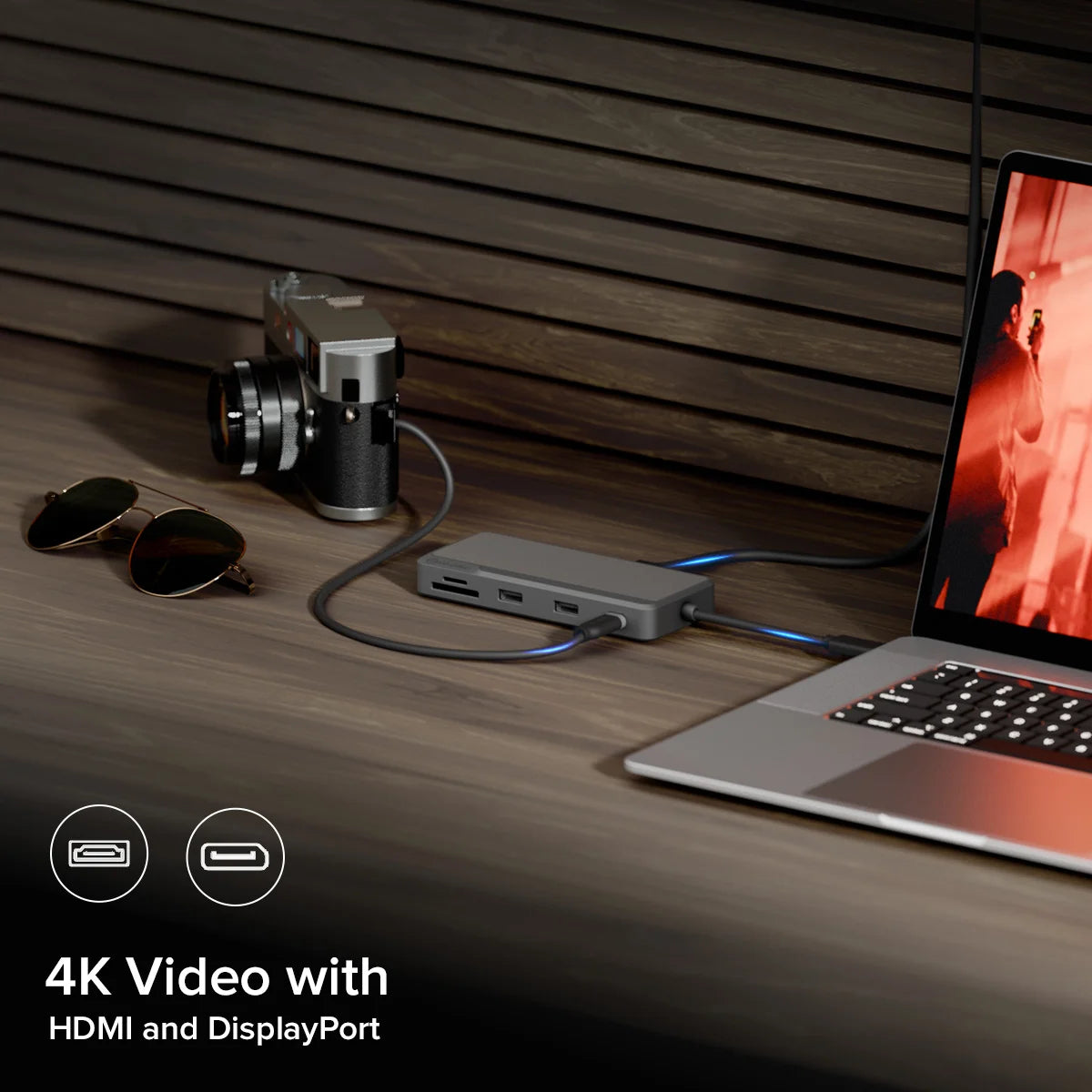

Stunning 4K Video

​​Small but powerful, the Axis Dock can extend a laptop’s display to two external monitors significantly expanding the computer’s capabilities.

​Supporting resolutions up to 4K*, this dock provides vivid high resolution visualization for increased visual fidelity.

SUPPORTS
SINGLE DISPLAY
2+ DISPLAYS

​* Video resolutions and refresh rates that can be achieved are dependent on the capabilities of the connected computer and monitor. Check the FAQ’s below for guidance in the resolutions you can expect to achieve with your equipment.​

​​Small and Robust​

​​ALOGIC is redefining docking stations by packing the same features of a traditional large format dock into compact devices that are just as at home on a desk or on the road.

​A robust and elegant mix of Aluminium and impact resistant ABS ensure the hub is strong so it can live in a laptop bag while taking up minimum space and without fear of being damaged.​

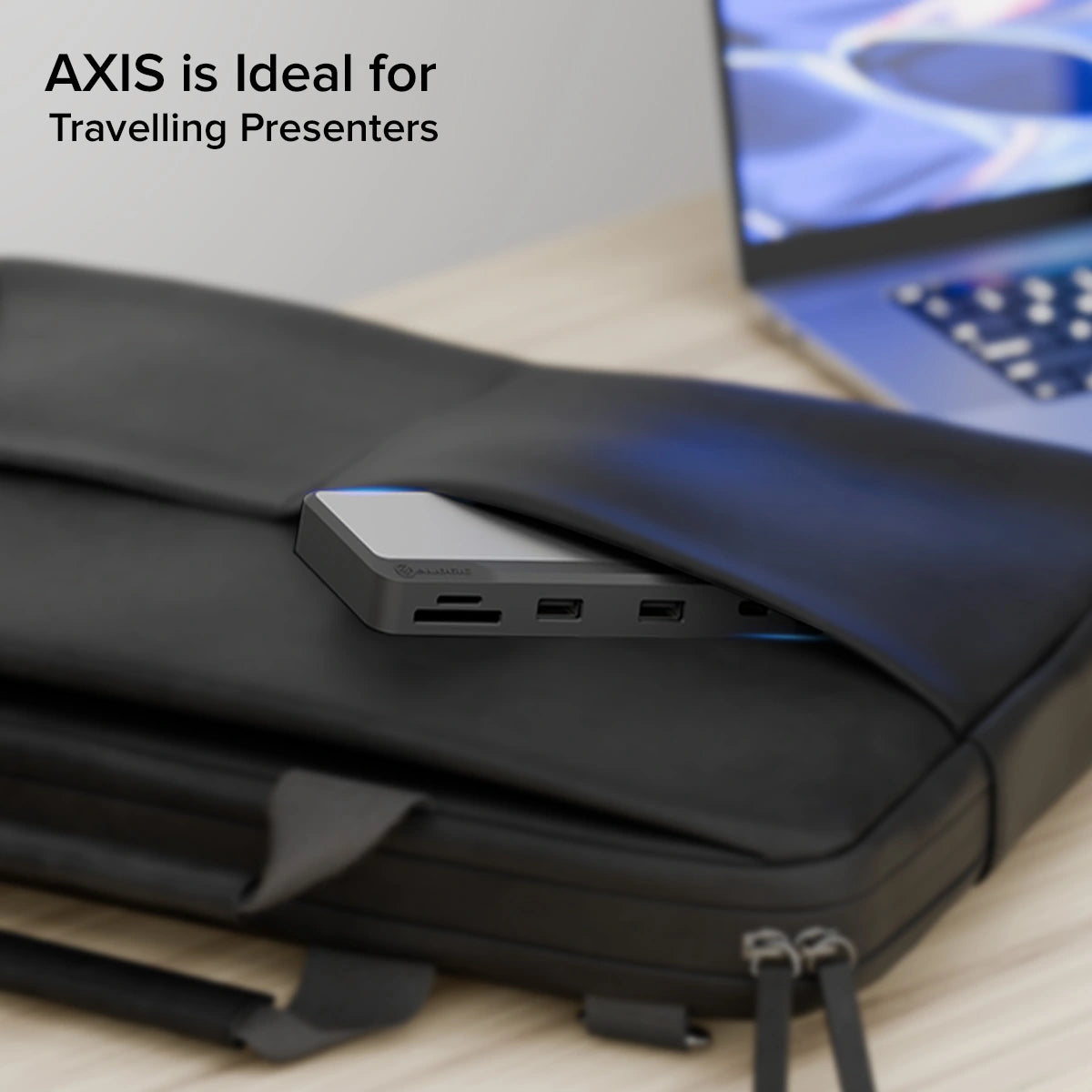

Compact Design

This dock’s compact design is perfect when space is at a premium and makes it a logical choice for mobile users – road warriors, educators, students and professionals who work between the office and home.

Frequently Asked Questions

General

Will this device work with my current computer that has USB-A, USB-C or Thunderbolt ports?
Yes! This product is compatible with all Windows, macOS and Chromebook computers including those with USB-A and Thunderbolt ports.

Note: When connected to a USB-A port, only HDMI 2 and 3 can be used (2x 1920*1080@60Hz displays).

Maximum resolutions for the different video outputs vary depending on the capabilities of the connected computer. Guidance on achievable resolutions can be found in the resolution support table in the specifications for the product.
Will this device work with my Macbook?
Yes! This device works with all MacBooks released since 2018.MacBooks can only connect to one display at a time using this device. If you need to connect two or more monitors to a MacBook, please take a look at ALOGIC DisplayLink based docks including the DX2, DX3, DV3,DV4, CH2 and CD2 products.

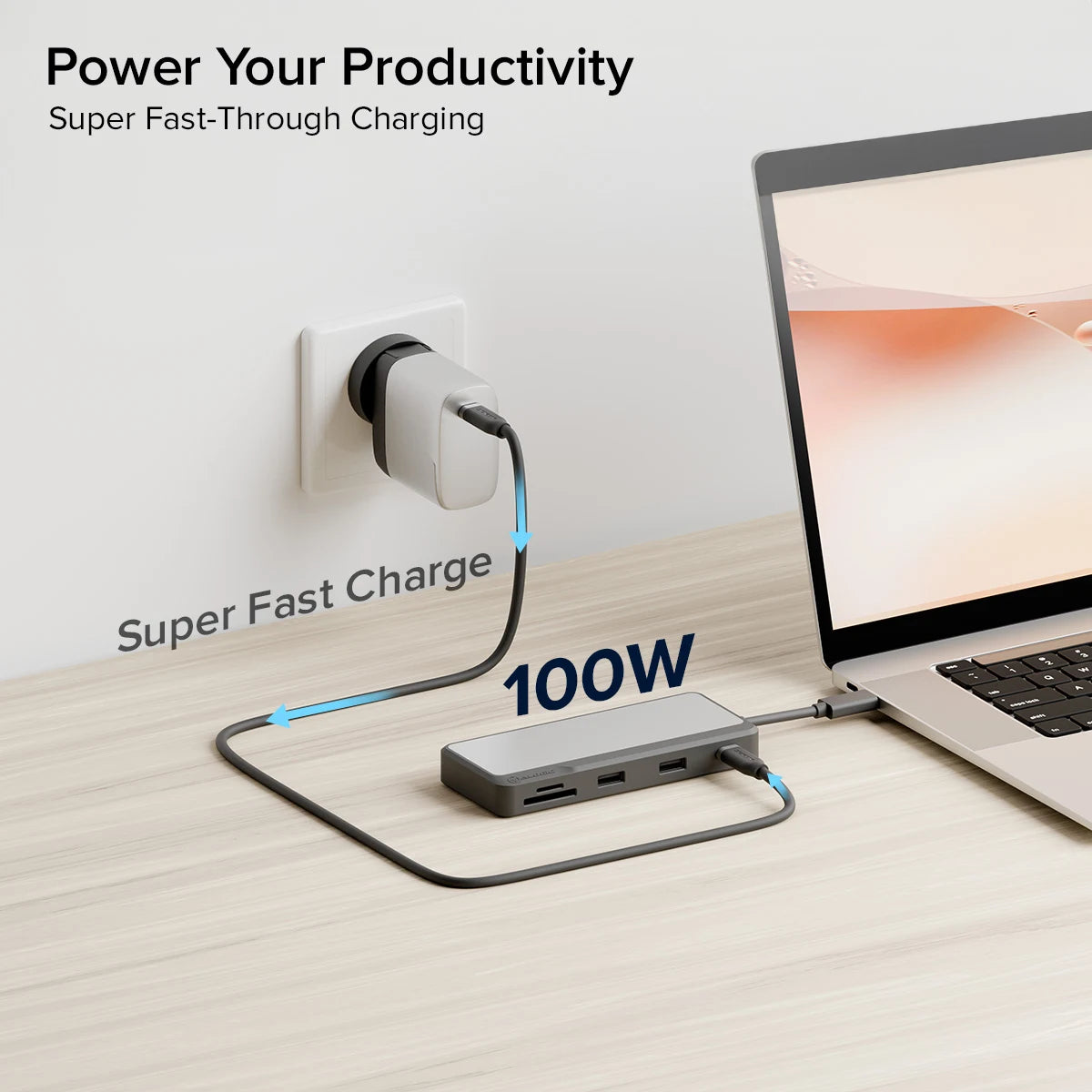

Can I charge my computer with this device?

This device can operate standalone and receive power from the computer it is connected to, or you can connect a USB-C Power Delivery (USB PD) power adapter (available separately) to the hub and it can charge computers and tablets that support USB PD charging.

The device supports USB PD 2.0 and 3.0 power adapters up to 100W. Note that the device can reserve up to 15W from power adapters to power itself and peripheral devices connected to the ports on the hub so it is best to use a USB PD power adapter that is at least 15W larger than the power adapter that was supplied with the computer.

The maximum Wattage that this hub can provide to charge a computer is 85W (100W power adapter minus 15W reserved by the hub). This is sufficient for most laptops, but a few larger high performance laptops may slow charge or not be able to charge through this device. If the computer shows a message indicating that it is not receiving enough power from the device, increase the size (Wattage) of the connected power adapter or connect the power adapter directly to the computer.

Specifications
  • Part No.: FUPHDDP1

Physical Characteristics

  • Product Dimensions: 130 x 55 x 17.5mm (L x W x H excluding cable)
  • Cable Length: 230mm
  • Colour: Space Grey and Black
  • Weight (product): 133g approx
  • Materials: Aluminium and ABS
  • Input: 1 x Integrated USB-C cable for connection to computer
    1 x USB-C power input; supports USB Power Delivery (USB PD) power sources up to 100W (shared with USB 2.0 data)
  • Output: 1 x HDMI 2.0
    1 x DisplayPort 1.42 x USB-A 3.2 Gen 1 5Gbps
    1 x USB-C 3.2 Gen 1 5Gbps
    1 x USB-C 2.0 with PD power passthrough
    1 x SD Card Reader
    1 x Micro SD/TF Card Reader
    1 x RJ45 Ethernet 1 Gbps
  • Power: Device can operate powered from the host computer or by connecting a USB-C Power Delivery (USB PD) power adapter (not included).
    The hub will accept up to 100W of power when a suitable USB PD power supply is connected; up to 15W is reserved for use by the hub and connected devices and the remaining power will be made available to charge the computer (up to 85W, dependent on the size of the power supply).
  • Video Resolution: Maximum refresh rate is dependent on the capability of the host computer and resolution of the connected display.
    See resolution tables at the bottom of this document for full specifications.
  • Audio Support: Supports HDMI audio output
  • Environmental Characteristics: Operating Temperature - 0°C to +35°C
    Operating Humidity - 10% to 85% RH (no condensation)
  • Package Includes: 1 x FUPHDDP1 USB-C Dual Display Dock
    1 x User Manual
  • Device Compatibility: Compatible with Windows, MacOS, Chrome OS computers.
    USB-C port on the computer that the device is connected to must support DisplayPort Alternate Mode video output for the video port on the dock to work.
    USB-C port on the computer that the device is connected to must support USB Power Delivery charging for passthrough charging from the dock to work.
    Windows and some Chrome OS computers are able to show independent video on two displays connected to this device.
    MacOS devices are not able to show independent video on two or more displays connected to this device. This device is suitable for connecting MacOS devices to a single display.
  • Compliance: FCC, CE, UKCA, RoHS
  • Warranty: 2 Years
  • Barcode (EAN): 9350784027337
