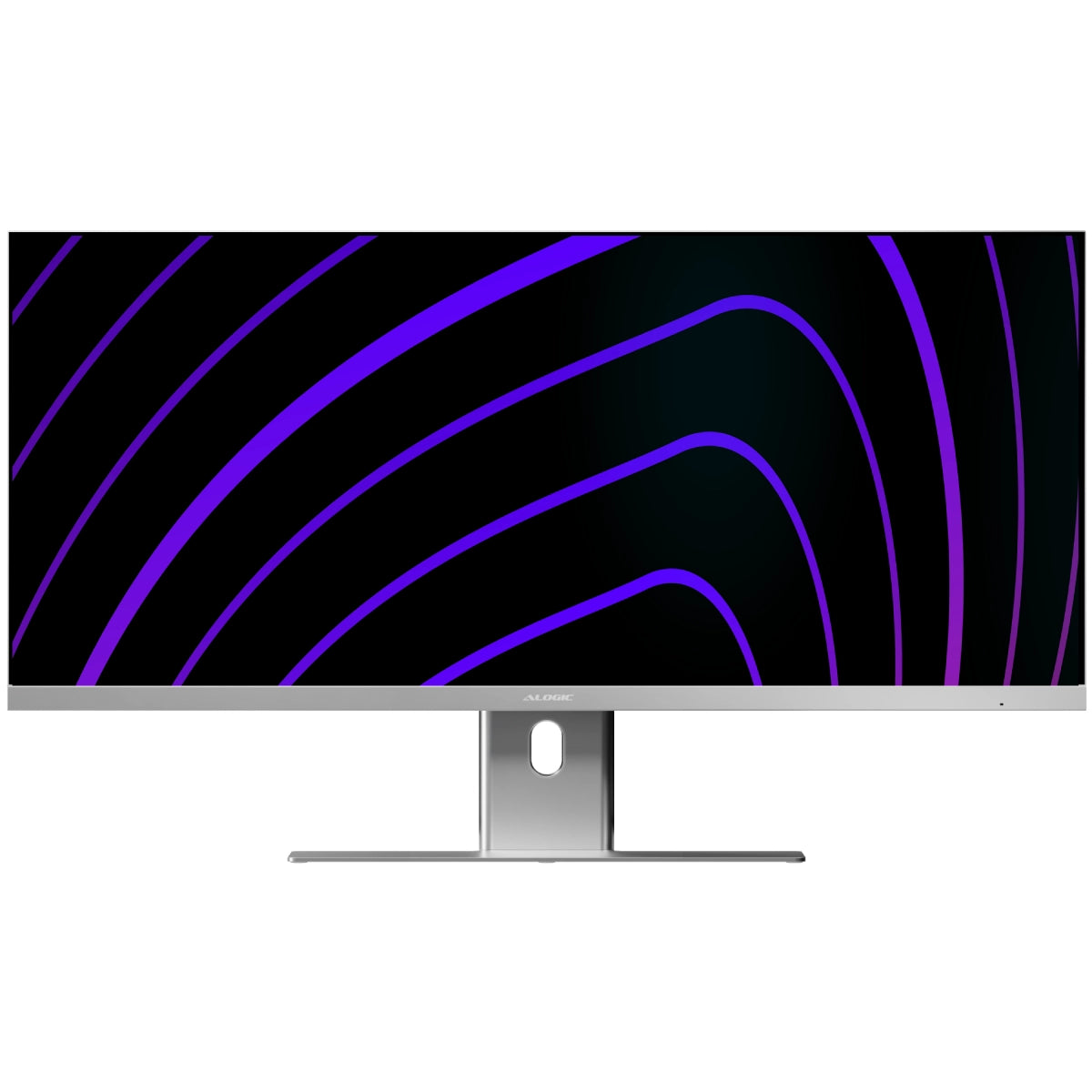

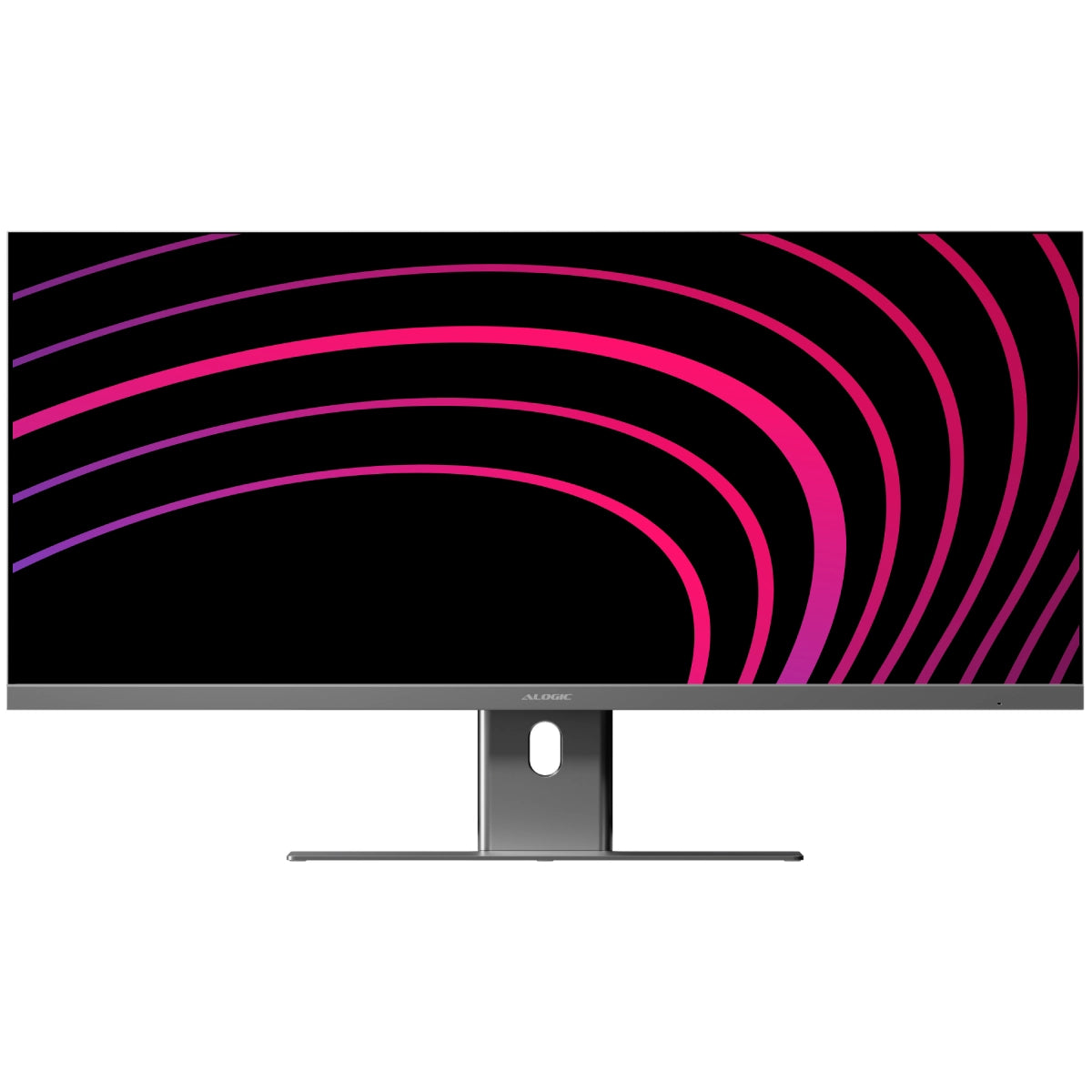

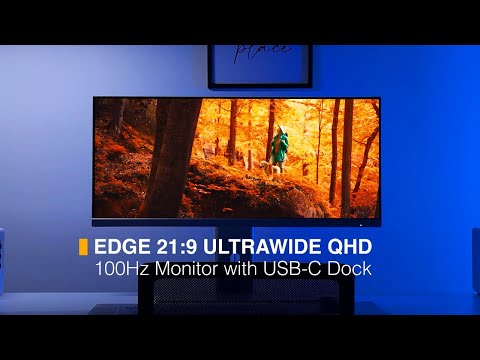

34" Edge 21:9 Ultrawide QHD (3440x1440) 100Hz Monitor with USB-C Dock and 90W Power Delivery

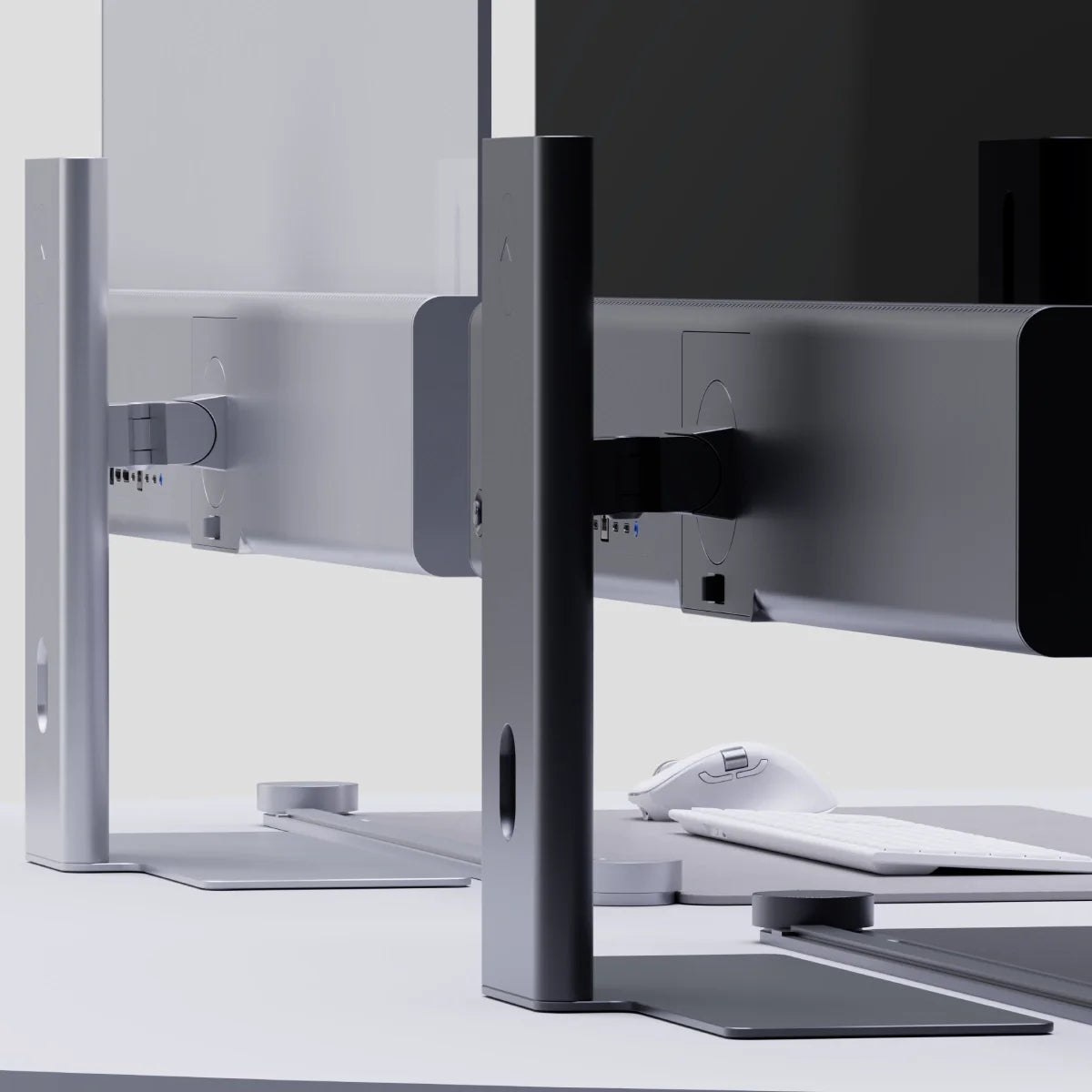

Yes, Edge supports 100x100mm VESA mounts. As a larger monitor, it’s important to check your monitor stand will support Edge to avoid damaging your monitor.


Edge 34”: 815*41*367mm, 6kg
Edge 40”: 941*41*419mm, 7.4kg

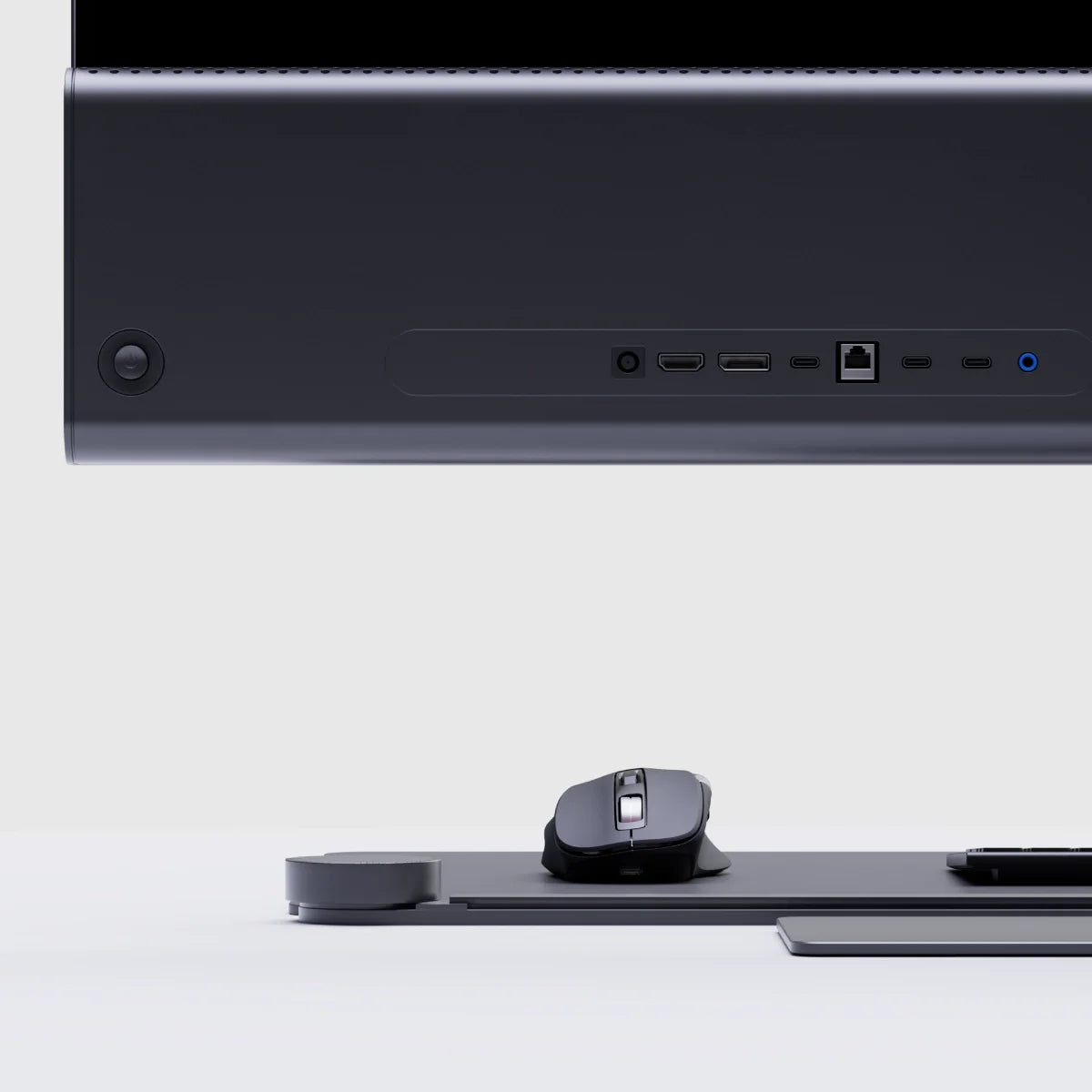

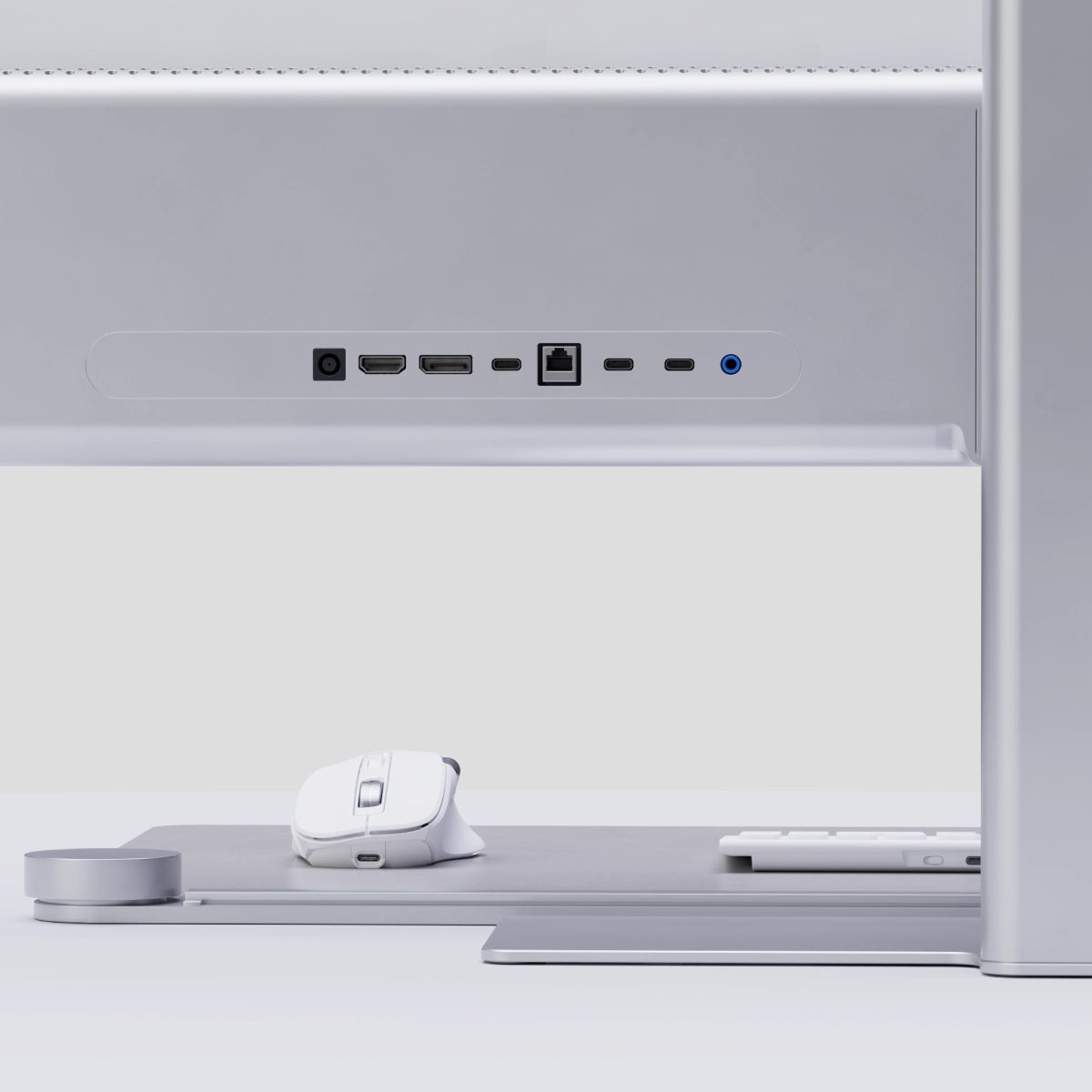

If your computer supports USB-C video (Thunderbolt or DP Alt Mode) we recommend using the included USB-C cable to connect to Edge, as this will also connect your computer to Edge’s Ethernet and USB-C accessory ports as well as power delivery. If your computer does not support this, HDMI and DisplayPort will both give you a full quality picture using Edge.

To charge your laptop via Edge (up to 90W), simply connect it to the monitor via a USB-C cable which supports the required wattage. However, it does need to plug into a USB-C port compatible with PD (Power Delivery) on your computer. These can sometimes be identified by the presence of a battery icon next to the port on your laptop, but often you’ll need to check the user manual or manufacturer’s website to figure out which USB-C ports support PD. All Thunderbolt 3 and 4 ports support PD.

Yes, Edge monitors have been tested with all major operating systems.

No, the ALOGIC light cannot be manually turned off or on.

Yes, Edge supports HDR 400.

Yes, Edge supports Picture in Picture (PIP) and Picture by Picture (PBP) modes, which can be activated via the “Multi-Window” section of the monitor’s settings menu, under “Picture”.

If the image on your screen looks stretched out or distorted, the most likely reason is that your computer isn’t sending the right video feed.
Windows:

1. Open “Settings” from the Windows Start Menu.
2. Navigate to “System” then “Display”.
3. In the bottom left corner of the window showing the displays, ensure it’s set to “Extend these Displays” and not “Duplicate these Displays”.
4. Ensure the resolution is set to “3456x1440” or “3440x1440”, whichever appears in your options list.

Mac:
1. Open your computer’s “System Settings” menu (click on the Apple icon in the top left corner) and navigate to “Displays”.
2. Click on your Edge monitor.
3. Make sure “Use as” is set to either “Main Display” or “Extended Display”, not “Mirror”.
4. In the list of available resolutions, ensure Edge is set to either “3456x1440” or “3440x1440”, whichever appears in the list. If this doesn’t work, try resetting Edge’s settings to factory default – open the monitor’s menu by pressing in the joystick, navigate down to “System Settings” then select Reset.
If these steps don’t resolve your problem, please reach out to support.au@alogic.co and we’ll help you figure out what’s going wrong.

On the latest versions of Windows, macOS and most versions of Linux, arranging two windows side by side is as easy as selecting and dragging an app or window to the edge of the screen, waiting until a translucent outline appears over half the screen, and releasing. For more information on these features and advanced tips, consult Microsoft and Apple’s official help pages.
