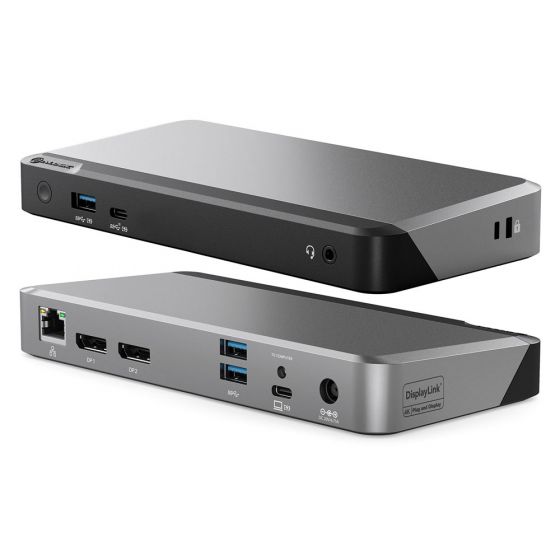

DX2 Dual 4K Display Universal Docking Station – with 100W Power Delivery
Based in India
Expert Support
Free Shipping
USB-C & USB-A LAPTOP COMPATIBLE
IT decision-makers and organisations have more options with the DX2. It supports USB-C and USB-A laptop deployment.
DUAL DISPLAY ON M1/M2 MAC
M1/M2 Mac users can work on up to two screens when they plug into the DX2.
MADE WITH DISPLAYLINK
The DX2’s DisplayLink technology boosts your connectivity, power and productivity at work.

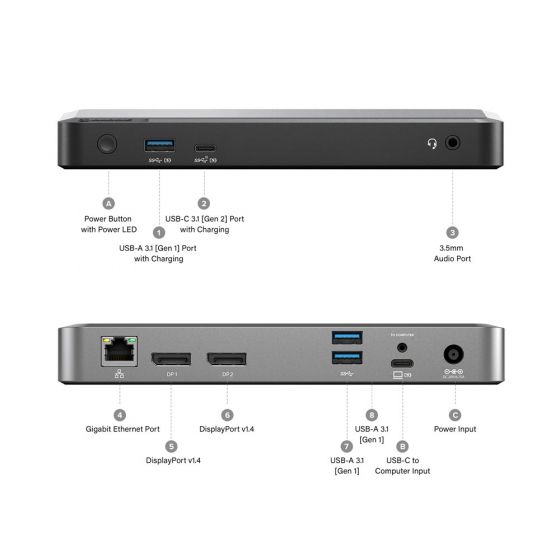

9 HIGH-PERFORMANCE PORTS
- USB-A 3.1 Gen 1 (5G) BC 1.2 & Apple Charging Support connects with older laptops and charges Apple devices
- USB-C 3.1 Gen 2 (10G) BC 1.2 & Apple Charging Support connects with modern laptops and charges Apple devices
- 3.5mm TRRS Audio/Microphone Jack supports quality recording and playback
- RJ45 Ethernet 1 Gbps for speedy data transfer
- DisplayPort (DP1.4/DP++) for generous bandwidth data transmission
- DisplayPort (DP1.4/DP++) for generous bandwidth data transmission
- USB-A 3.1 Gen1 (5G) works with older laptop
- USB-A 3.1 Gen1 (5G) works with older laptop
Frequently Asked Questions
General
What maximum video resolution does the ALOGIC DX2 docking station support?
The ALOGIC DX2 Docking Station supports dual 4K @ 60Hz external displays simultaneously through its twin DisplayPort 1.4 outputs, enabling high-resolution multi-monitor desktop setups across both Windows PCs and MacBooks.

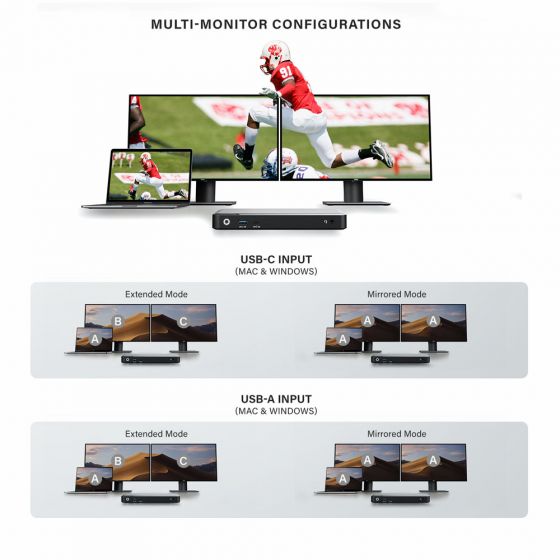

Can I run dual extended 4K monitors on base M1, M2, and M3 MacBooks using the DX2 dock?
Yes. Base M1, M2, and M3 MacBooks natively limit external display output to a single screen over standard USB-C. Because the ALOGIC DX2 Dock utilizes integrated DisplayLink technology, installing the free DisplayLink driver enables base Apple Silicon MacBooks to drive two extended 4K @ 60Hz displays.

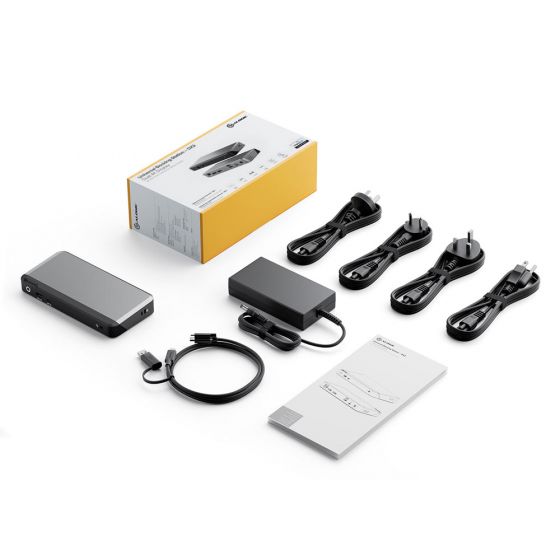

Does the ALOGIC DX2 dock come with a power supply, and how much power does it supply?
Yes. The ALOGIC DX2 includes a dedicated external power adapter that provides up to 100W Power Delivery (PD) over the host USB-C cable. This supplies sufficient power to fast-charge 13-inch, 14-inch, and 16-inch laptops (such as MacBook Pro, Dell XPS, Lenovo ThinkPad, and HP Spectre) while powering all connected peripherals.
Can I use the DX2 dock with older laptops that only have USB-A ports?
Yes. The dock includes a USB-C to USB-A adapter for legacy laptops. DisplayLink technology enables dual 4K display output and full port expansion over USB-A; however, host laptop charging via Power Delivery is not available over USB-A connections.
Do I need to install software or drivers to use the DX2 Docking Station?
Yes. To activate dual 4K display output across macOS, Windows, and ChromeOS, you must download and install the free Synaptics DisplayLink driver. Peripheral data ports, Ethernet, and audio jacks work without additional drivers.
What ports are built into the ALOGIC DX2 Docking Station?
The ALOGIC DX2 Dock provides 7 essential workstation connections:
Video Output: 2x DisplayPort 1.4 (Dual 4K @ 60Hz).
USB Ports: 1x USB-C 3.2 Gen 2 (10Gbps), 1x USB-A 3.2 Gen 2 (10Gbps), and 2x USB-A 3.2 Gen 1 (5Gbps).
Networking & Audio: 1x RJ45 Gigabit Ethernet port (1Gbps) and 1x 3.5mm combo audio jack.

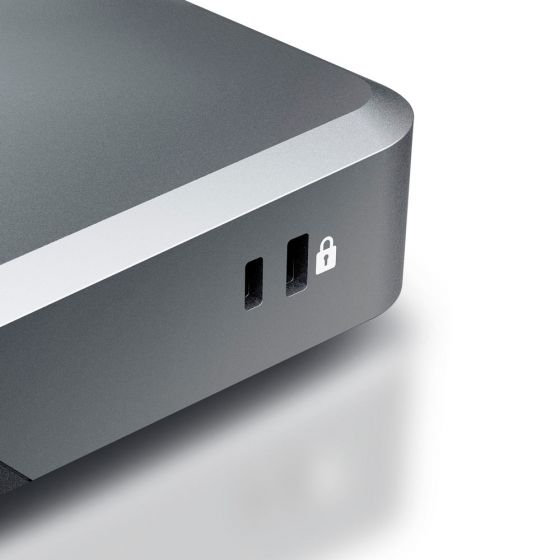

Security: Integrated Kensington lock slot for physical desk security.
Video Output: 2x DisplayPort 1.4 (Dual 4K @ 60Hz).
USB Ports: 1x USB-C 3.2 Gen 2 (10Gbps), 1x USB-A 3.2 Gen 2 (10Gbps), and 2x USB-A 3.2 Gen 1 (5Gbps).
Networking & Audio: 1x RJ45 Gigabit Ethernet port (1Gbps) and 1x 3.5mm combo audio jack.
Security: Integrated Kensington lock slot for physical desk security.
Specifications
Downloads
DX2 Dual 4K Display Universal Docking Station – with 100W Power Delivery
Sale priceRs. 26,990.00
Regular price (/)
